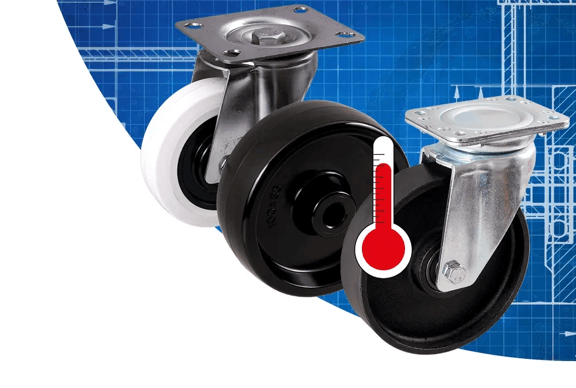

Heat-Resistant Castors and Wheels

Reliable Solutions for Extreme Temperatures

Heat-resistant castors and wheels are meticulously engineered to meet extreme temperature demands. These premium products not only provide outstanding load capacity but also maintain reliable performance in environments with temperatures reaching up to +600°C. Their robust construction and utilization of heat-resistant materials make them ideal for industries requiring high thermal endurance, such as metal processing, glass production, industrial furnaces, production plants, food processing, and high-temperature facilities.

With their ability to withstand both mechanical stress and extreme temperatures, heat-resistant castors from Schwalb ensure long-term and reliable performance. They also offer low rolling resistance, allowing loads to be moved effortlessly , even in the most adverse conditions. Heat-resistant castors are not only highly functional, but also durable and designed to meet the requirements of demanding industrial applications.

65 Products

GG-HI
  • Heat Resistant Wheels
  • cast iron wheels
  • HEAT-RESITANT CAST IRON WHEELS
  • Plain bore
GG-HI
  • 80 - 200 mm
  • 130 - 600 kg
  • -100 to +600 °C
LDV/GG-HI
  • Heat Resistant Castors
  • cast iron wheels
  • HEAT-RESITANT CAST IRON CASTORS
LDV/GG-HI
  • 123 - 200 mm
  • 360 - 1.000 kg
  • -40 to +400 °C
LV/GG-HI
  • Heat Resistant Castors
  • cast iron wheels
  • HEAT-RESITANT CAST IRON CASTORS
LV/GG-HI
  • 123 - 200 mm
  • 180 - 600 kg
  • -40 to +400 °C
GK-HI280
  • Heat Resistant Wheels
  • cast iron wheels
  • HEAT-RESITANT CAST IRON WHEELS
  • Ball bearings
GK-HI280
  • 96 - 273 mm
  • 350 - 1.600 kg
  • -40 to +280 °C
LDV/GK-HI280
  • Heat Resistant Castors
  • cast iron wheels
  • HEAT-RESITANT CAST IRON CASTORS
LDV/GK-HI280
  • 96 - 195 mm
  • 700 - 1.000 kg
  • -40 to +280 °C
LV/GK-HI280
  • Heat Resistant Castors
  • cast iron wheels
  • HEAT-RESITANT CAST IRON CASTORS
LV/GK-HI280
  • 121 - 195 mm
  • 400 - 600 kg
  • -40 to +280 °C
GK-HI350
  • Heat Resistant Wheels
  • cast iron wheels
  • HEAT-RESITANT CAST IRON WHEELS
  • Ball bearings
GK-HI350
  • 96 - 273 mm
  • 350 - 1.600 kg
  • -40 to +350 °C
LDV/GK-HI350
  • Heat Resistant Castors
  • cast iron wheels
  • HEAT-RESITANT CAST IRON CASTORS
LDV/GK-HI350
  • 96 - 195 mm
  • 700 - 1.000 kg
  • -40 to +350 °C
LV/GK-HI350
  • Heat Resistant Castors
  • cast iron wheels
  • HEAT-RESITANT CAST IRON CASTORS
LV/GK-HI350
  • 121 - 195 mm
  • 400 - 600 kg
  • -40 to +350 °C
KLG-HI
  • Heat Resistant Wheels
  • plastic wheels
  • HEAT-RESISTANT POLYAMIDE WHEELS
  • Plain bore
KLG-HI
  • 80 - 200 mm
  • 250 - 900 kg
  • -40 to +150 °C
  • Hardness: 70° +/- 3° Shore D
LN/KLG-HI
  • Heat Resistant Castors
  • plastic wheels
  • HEAT-RESITANT POLYAMIDE CASTORS
LN/KLG-HI
  • 80 - 200 mm
  • 150 - 300 kg
  • -20 to +130 °C
  • Hardness: 70° +/- 3° Shore D
LRN/KLG-HI
  • Heat Resistant Castors
  • plastic wheels
  • HEAT-RESITANT POLYAMIDE CASTORS
LRN/KLG-HI
  • 80 - 200 mm
  • 150 - 300 kg
  • -20 to +130 °C
  • Hardness: 70° +/- 3° Shore D
PHB-HI
  • Heat Resistant Wheels
  • wheels made from composite material
  • HEAT-RESISTANT COMPOSITE WHEELS
  • Sliding bushing
PHB-HI
  • 80 - 200 mm
  • 170 - 520 kg
  • -40 to +300 °C
  • Hardness: 90° +/- 3° Shore D
LN/PHB-HI
  • Heat Resistant Castors
  • wheels made from composite material
  • HEAT-RESISTANT COMPOSITE CASTORS
LN/PHB-HI
  • 80 - 200 mm
  • 150 - 300 kg
  • -40 to +280 °C
  • Hardness: 90° +/- 3° Shore D
LRN/PHB-HI
  • Heat Resistant Castors
  • wheels made from composite material
  • HEAT-RESISTANT COMPOSITE CASTORS
LRN/PHB-HI
  • 80 - 200 mm
  • 150 - 300 kg
  • -40 to +280 °C
  • Hardness: 90° +/- 3° Shore D
PHG-HI
  • Heat Resistant Wheels
  • wheels made from composite material
  • HEAT-RESISTANT COMPOSITE WHEELS
  • Plain bore
PHG-HI
  • 80 - 200 mm
  • 170 - 520 kg
  • -40 to +300 °C
  • Hardness: 90° +/- 3° Shore D
LKN/PHG-HI
  • Heat Resistant Castors
  • wheels made from composite material
  • HEAT-RESISTANT COMPOSITE CASTORS
LKN/PHG-HI
  • 80 - 100 mm
  • 170 kg
  • -40 to +300 °C
  • Hardness: 90° +/- 3° Shore D
LKRN/PHG-HI
  • Heat Resistant Castors
  • wheels made from composite material
  • HEAT-RESISTANT COMPOSITE CASTORS
LKRN/PHG-HI
  • 80 - 100 mm
  • 170 kg
  • -40 to +300 °C
  • Hardness: 90° +/- 3° Shore D
LV/PHG-HI
  • Heat Resistant Castors
  • wheels made from composite material
  • HEAT-RESISTANT COMPOSITE CASTORS
LV/PHG-HI
  • 125 - 200 mm
  • 250 - 520 kg
  • -40 to +300 °C
  • Hardness: 90° +/- 3° Shore D
PHG-SHI
  • Heat Resistant Wheels
  • plastic wheels
  • HEAT-RESISTANT PLASTIC WHEELS
  • Plain bore
PHG-SHI
  • 80 - 200 mm
  • 300 - 900 kg
  • -70 to +280 °C
  • Hardness: 80° +/- 3° Shore D
LKN/PHG-SHI
  • Heat Resistant Castors
  • plastic wheels
  • HEAT-RESITANT PLASTIC CASTORS
LKN/PHG-SHI
  • 80 - 125 mm
  • 240 - 280 kg
  • -70 to +280 °C
  • Hardness: 80° +/- 3° Shore D
LKRN/PHG-SHI
  • Heat Resistant Castors
  • plastic wheels
  • HEAT-RESITANT PLASTIC CASTORS
LKRN/PHG-SHI
  • 80 - 125 mm
  • 200 - 230 kg
  • -70 to +280 °C
  • Hardness: 80° +/- 3° Shore D
LN/PHG-SHI
  • Heat Resistant Castors
  • plastic wheels
  • HEAT-RESITANT PLASTIC CASTORS
LN/PHG-SHI
  • 80 - 200 mm
  • 150 - 300 kg
  • -70 to +280 °C
  • Hardness: 80° +/- 3° Shore D
LRN/PHG-SHI
  • Heat Resistant Castors
  • plastic wheels
  • HEAT-RESITANT PLASTIC CASTORS
LRN/PHG-SHI
  • 80 - 200 mm
  • 150 - 300 kg
  • -70 to +280 °C
  • Hardness: 80° +/- 3° Shore D

You might also be interested in this ...

A Well-Rounded Solution: Our Configurator

With just a few clicks, you can quickly select from a wide range of criteria and configure complex products yourself.
designing wheels, castors and parts for conveyors
6G5A3782

Rolling in the right direction: Our Technical Guide

Find the ideal wheels and castors or conveyor technology components  for your requirements and projects - with helpful tips concerning selection criteria, surfaces, load capacity an much more.

Office Schwalb Wheels and Castors, Conveyor Technology

Get in touch with us

Do you have any questions or requests? You can send us an inquiry using our form and we will get back to you as soon as possible.

Or do you have any questions and need advice by phone? Please give us a call.

To the form Call now
Chemical Restistance of Wheel Material

Chemical Resistance of Wheel Materials

Find an overview of the chemical resistance of wheel materials such as rubber, polyamide, polyurethane and Vulkollan® of all Schwalb wheels and castors - for the appropriate selection of wheel material for your application.

Robust Wheels and Castors for Extreme Environments

Schwalb heat-resistant castors and wheels are engineered to endure high-temperature conditions while maintaining optimal functionality. They exhibit exceptional temperature resistance, making them suitable for use in rigorous environments such as metal processing, bakeries, and the glass and ceramics industries.

Advantages of our heat-resistant wheels and castors:

  • Temperature Resistance: withstands temperatures up to +600°C.
  • High Load Capacity: for transporting heavy loads under extreme conditions.
  • Abrasion-Resistant: durable and resistant to thermal and mechanical loads.

Versatile Material Options for Different Fields of Application

We provide heat-resistant castors and wheels crafted from a variety of materials, each designed to meet specific requirements and applications. Options such as thermoplastics, rubber, cast iron, and thermosets offer distinct advantages, facilitating versatile use in high-temperature environments.

Available materials:

  • Thermoplastics: stable and resistant at moderate temperatures.
  • Thermosets: ideal for high temperatures and resistant to chemical influences.
  • Rubber: reduced noise and shock absorption at temperatures up to +280°C.
  • Cast Iron Wheels: Perfect for extremely high temperatures up to +400°C and heavy loads.

Areas of Application for Our Heat-Resistant Wheels and Castors

Heat-resistant castors and wheels are used in various industries where extreme temperatures and mechanical loads are commonplace. They enable reliable and safe movement of materials and equipment in high-temperature environments.

Typical areas of application:

  • Industrial Plants: ideal for use in ovens, dryers and production lines.
  • Food Production: perfect for ovens and drying systems in bakeries.
  • Glass and Ceramics Industry: suitable for transporting hot products during production.
  • Chemical and Pharmaceutical Industry: resistant to high temperatures and aggressive chemicals.

Technical Features and Customization Options

Our heat-resistant castors are not only robust, but also flexible to use. They are available in various sizes and load capacities, making it possible to find the optimum solution for each specific application.

Technical Highlights:

  • Temperature Range: heat-resistant castors and wheels are designed for temperatures from -40°C to +600°C.
  • Load Capacities: depending on the material, our castors can carry loads of up to 1,000 kg.
  • Housing design: sturdy, made of galvanized sheet steel or stainless steel, for maximum durability.
Heat-Resistant Wheel Versions:
  • Cast Iron Wheels:
    temperature range from -40°C to +400°C, load capacities up to 1,000 kg
  • Composite Material:
    temperature range from -40°C to +400°C, load capacity up to 1,000 kg, resistance to chemicals
  • Plastic Wheels:
    temperature range from -40°C to +280°C, load capacities up to 600 kg, low tare weight.
  • Rubber Wheels:
    temperature range from -40°C to +280°C, load capacities up to 120 kg, suitable for applications that require a quiet ride, good shock absorption.
For a detailed description of the heat-resistant wheel materials, klick here.

Why Schwalb Wheels and Castors?

Schwalb Wheels and Castors stand for quality and reliability. Our heat-resistant castors and wheels offer the ideal combination of performance and durability and are designed for the most demanding environments. We offer customized solutions that are perfectly matched to your specific needs, whether you work in industry, food processing or metalworking.

Advantages at a glance:

  • High-Quality Materials: resistant to heat, abrasion and chemicals.
  • Wide Range of Applications: ideal for high-temperature applications in various industries.
  • Many Years of Experience: customized solutions that meet the highest demands.

Find the Right Solution for Your Requirements

Do you need heat-resistant wheels and castors that can withstand extreme temperatures? Schwalb Wheels and Castors offers you a wide range of products that are specially designed for high-temperature environments. Our experts will be pleased to advise you and find the optimum solution for your application.
Heat-resistant castors and wheels from Schwalb Wheels and Castors offer a reliable and durable solution for extreme temperatures. Rely on Schwalb castors to meet your needs in high-temperature production, food processing and many other industries.
