Spring-loaded castors

Perfect protection for sensitive loads

Schwalb's sprung castors offer you an innovative solution for the safe and vibration-free transportation of sensitive loads. Thanks to the integrated suspension, unevenness, edges and shocks can be effectively compensated for, resulting in smooth movement on different surfaces. These castors are particularly suitable for noise-sensitive and sensitive areas such as catering (noise prevention when transporting crockery), in the IT/electronics industry (for sensitive electrical equipment that cannot tolerate vibrations), in laboratories (to prevent liquids from spilling/sloshing) and in the glass processing industry (breakage prevention). Spring-loaded ladder castors are also available for safe access to ladders.

High-quality spring-loaded castors for various applications

Our sprung castors are made from a variety of materials to meet the requirements of your application. From shock-absorbing rubber wheels to durable polyurethane and Vulkollan wheels, each caster offers specialized features for optimal performance and durability.

  • Polyurethane: Perfect for sensitive surfaces, offering quiet and smooth operation.
  • Elastic solid rubber: Ideal for use on uneven floors with high shock absorption and load capacity.
  • Vulkollan wheels: Particularly robust and durable, suitable for heavy-duty applications.
  • Polyamide: Lightweight and chemically resistant, perfect for aggressive environments.
  • Stainless steel: Stainless steel design for hygienically demanding areas.

11 Products

LFA/AVK
  • Spring-Loaded Castors
  • SPRING-LOADED RUBBER CASTORS
LFA/AVK
  • 50 - 75 mm
  • 50 - 60 kg
  • -25 to +70 °C
  • Hardness: 95° + / -3° Shore A
LFV/EAK
  • Spring-Loaded Castors
  • aluminum rim
  • SPRING-LOADED ELASTIC RUBBER CASTORS
LFV/EAK
  • 100 - 200 mm
  • 180 - 450 kg
  • -20 to +80 °C
  • Hardness: 68° +/- 3° Shore A
LFM/EKK-BL
  • Spring-Loaded Castors
  • SPRING-LOADED ELASTIC RUBBER CASTORS
LFM/EKK-BL
  • 160 mm
  • 400 kg
  • -20 to +80 °C
  • Hardness: 65° +/- 3° Shore A
LFV/EKK-BL
  • Spring-Loaded Castors
  • SPRING-LOADED ELASTIC RUBBER CASTORS
LFV/EKK-BL
  • 100 - 200 mm
  • 200 - 350 kg
  • -20 to +80 °C
  • Hardness: 65° +/- 3° Shore A
LFOK/PAK
  • Spring-Loaded Castors
  • SPRING-LOADED POLYURETHANE-CASTORS
LFOK/PAK
  • 100 mm
  • 250 kg
  • -20 to +80 °C
  • Hardness: 95° +/- 3° Shore A
LFV/PAK
  • Spring-Loaded Castors
  • SPRING-LOADED POLYURETHANE-CASTORS
LFV/PAK
  • 100 - 200 mm
  • 280 - 800 kg
  • -20 to +80 °C
  • Hardness: 93° +/- 3° Shore A
LFOKN/PAKN
  • Spring-Loaded Castors
  • SPRING-LOADED POLYURETHANE CASTORS, STAINLESS
LFOKN/PAKN
  • 100 mm
  • 250 kg
  • -20 to +80 °C
  • Hardness: 95° +/- 3° Shore A
LFV/PAKS
  • Spring-Loaded Castors
  • SPRING-LOADED POLYURETHANE-CASTORS
LFV/PAKS
  • 100 - 200 mm
  • 180 - 700 kg
  • -20 to +80 °C
  • Hardness: 78° +/- 3° Shore A
LFM/PGK
  • Spring-Loaded Castors
  • SPRING-LOADED POLYURETHANE-CASTORS
LFM/PGK
  • 150 mm
  • 800 kg
  • -20 to +80 °C
  • Hardness: 93° +/- 3° Shore A

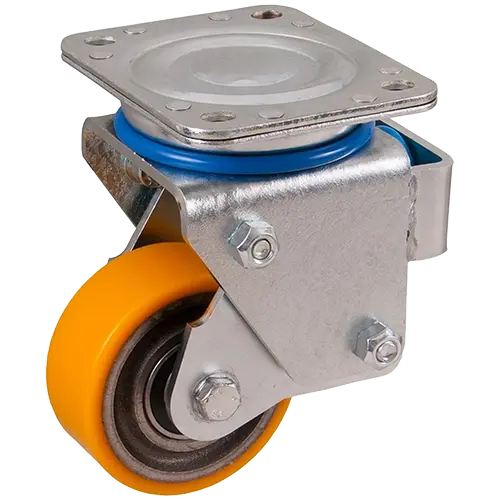

LFV/PGK
  • Spring-Loaded Castors
  • SPRING-LOADED POLYURETHANE-CASTORS
LFV/PGK
  • 100 - 200 mm
  • 350 - 800 kg
  • -20 to +80 °C
  • Hardness: 93° +/- 3° Shore A
LFV/PKKS
  • Spring-Loaded Castors
  • SPRING-LOADED POLYURETHANE-CASTORS
LFV/PKKS
  • 100 - 200 mm
  • 250 - 600 kg
  • -20 to +80 °C
  • Hardness: 87° +/- 3° Shore A

You might also be interested in this ...

A well-rounded solution: our configurator

With just a few clicks, you can make a quick selection from a wide range of criteria and configure complex products yourself.
simon-schieblehre-2
6G5A3782

Rolling in the right direction: Our adviser

Find the ideal wheels and castors or conveyor technology components  for your requirements and projects - with helpful tips concerning selection criteria, surfaces, load capacity an much more.

6G5A3712

Get in touch with us

Do you have any questions or requests? You can send us an inquiry using our form and we will get back to you as soon as possible.

Or do you have any questions and need advice by the phone? Please give us a call.

To the form Call now

Protection and comfort with Schwalb spring-loaded castors

Suspension castors are not only a choice for protecting sensitive loads, but also a solution for reducing noise and increasing ride comfort. They ensure that vibrations and shocks are minimized, which is particularly beneficial in noise-sensitive areas such as laboratories and events.

  • Reduced vibrations: Our castors offer excellent protection against vibrations and shocks.
  • Quiet operation: Noise is significantly reduced, making them ideal for use in quiet environments.
  • Durable: The robust construction and high-quality materials guarantee a long service life even with intensive use.

Advantages of sprung castors direct from the manufacturer

Our sprung castors are available in different versions and offer the right solution for every application. With their robust construction and high-quality materials, they are ideally suited for daily use in demanding conditions.

  • Protection against shocks: Delicate transported goods remain undamaged as shocks and vibrations are effectively absorbed.
  • Low noise: Perfect for noise-sensitive environments such as laboratories, restaurants and event rooms.
  • Durable and resistant: Manufactured from hard-wearing materials that are resistant to wear and mechanical stress.
  • Wide range of sizes and designs: Different materials and spring hardnesses offer custom-fit solutions for different requirements.

Areas of application for Schwalb spring-loaded castors

Technical specifications of sprung castors

Our spring-loaded castors are used in various industries and areas where sensitive goods and materials need to be transported safely. Their high adaptability makes them the ideal solution for demanding applications.

  • Glass industry: Spring-loaded castors are ideal for the safe transport of glassware as they minimize vibrations and prevent breakage.
  • Pharmaceutical industry: Protect sensitive laboratory tubes and prevent liquid spillage with vibration-free movement.
  • Event technology: Perfect for low-noise applications, such as clearing dishes or moving mobile stages and platforms.
  • Catering: Spring-loaded castors minimize noise when transporting crockery, which improves service in noise-sensitive areas.

Variants with specially adapted spring travel and reinforced housings are also available to meet additional stability and load-bearing requirements.

The technical specifications of our sprung castors are specially designed to effectively absorb shocks and vibrations while at the same time coping with high loads. The combination of robust materials, such as high-quality steel and abrasion-resistant polyurethane, and precisely tuned spring mechanisms ensure optimum performance even under demanding conditions. The springs not only provide shock absorption, but also help to reduce noise, which is particularly beneficial in noise-sensitive environments.

Our spring-loaded castors are available in various designs, sizes and spring strengths to meet the individual requirements of a wide range of industries. They offer a high load capacity of several hundred kilograms, depending on the model and design. The castors are optimized for use in environments that require special shock absorption, robustness and durability. Further details on diameters, spring travel and load capacities can be found in our product catalog.

Contact us for customized solutions

Are you looking for an individual solution for your sprung castors? Schwalb Rollen offers you customized products that are precisely tailored to your requirements. Let our team of experts advise you to find the ideal castor for your specific applications.

Schwalb spring-loaded castors are the ideal choice when it comes to the safe, quiet transportation of sensitive goods. Thanks to their robust construction and shock-absorbing properties, they offer maximum safety and comfort. Rely on the expertise of Schwalb castors and benefit from durable and reliable products that meet your requirements.
