BALL TRANSFER UNITS - 21

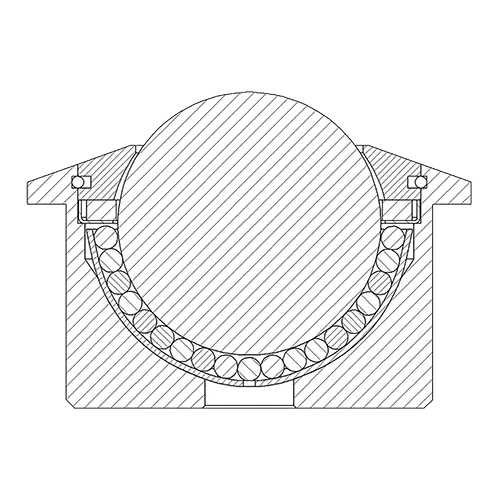

Profile: These heavy duty ball transfer units are produced as solid turned parts. Housing: galvanized steel, stainless steel hardened Cover: galvanized steel, stainless steel hardened Ball socket: Galvanized steel, hardened stainless steel Support balls: Tool steel hardened, stainless steel hardened Support ball: tool steel hardened, stainless steel hardened, plastic
Choose your variant
Go to product table
Product information

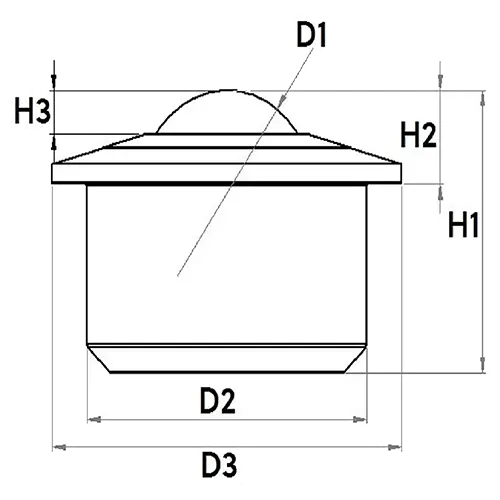

| Description | 21/30K |
|---|---|
| Load capacity (kg) | 100 |
| Ball housing | KU/VZ |
| Diameter (mm) | 45 x 55 |
| Ball Ø (mm) | 30 |
| Height (mm) | 37 x 14 x 5,5 |
Additional Information:
Operating conditions Temperature range from -30°C to +100°C. conveying speed up to 1.5 m/s. Dynamic load capacities up to max. 1,500 kg.
