Figure similar
undefined - SLRBN/TSMNAS
Profile: Stainless steel from 1.4301, 40/80/40 x 3 mm.

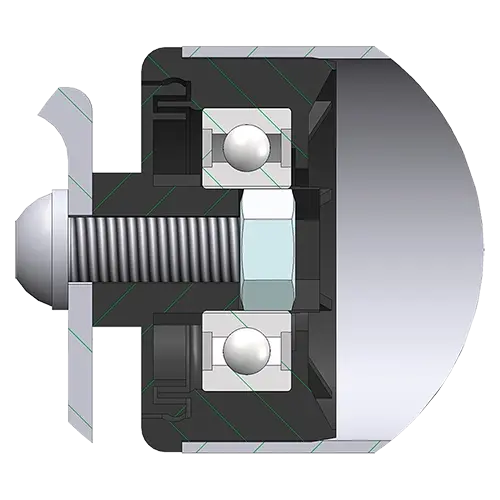

Bearing: Plastic support roller bearing antistatic with stainless steel deep groove ball bearing 6202 2RS and single labyrinth.
Hardness: 102 - 140 HB
Choose your variant
Go to product table
Product information
| Description | SLRBN/TSMNAS/400/062*1000 |
|---|---|
| Roller Ø (mm) | 50 |
| Conveyor length (mm) | 1.000 |

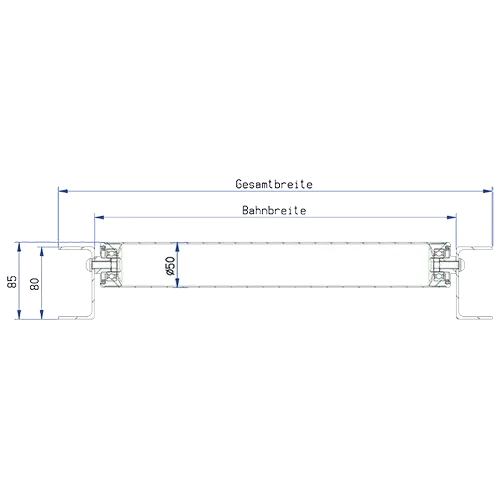

| Conveyor width (mm) | 400 |

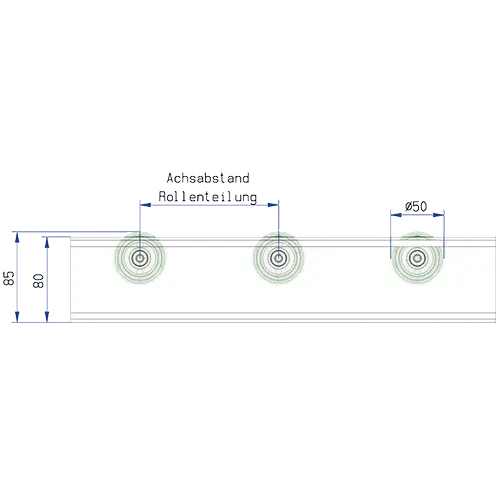

| Axle partition (mm) | 62,5 |
Additional Information:
As the roller-conveyors are always produced with the requested orders, a return and / or cancellation, even during delivery time, is excluded.
The width 400 mm is an example width. However, we are happy to manufacture the heavy-duty roller conveyors in your desired width up to max. 800 mm on request, just ask us.
For loads up to 200 kg/m, depending on track width, axle distance and support distance.
How high does the load capacity need to be?
